Standart Features
- Fully automatic bundle type pipe loading system
- Maximum capasity : 2.500 Kg.
- Minimum loading dimension 15×15 mm / Ø 15 mm pipe
- Maximum loading dimension 70×70 mm / Ø 80 mm pipe
- Maximum loading length 6,5 mt.
Optional Features
Cutting Capacity
Technical Specifications
| TECHNICAL SPECIFICATIONS | |
| Main Voltage (V) | 400 |
| Control Voltage (V) | 24 |
| Installed Power (kW)2 | 2 |
| Nominal Current (A) | 5 |
| Max. Loading Capacity Kg. | 2.500 |
| Max. Loading Length mm. | 6.500 |
| Air Pressure (Consumption) | 6 kg/cm2 (240 ℓ/min) |
| Machine Dimensions (LxWxH) mm | 6100x2100x1600 |
| Packing Dimensions (LxWxH) mm | 5300x2120x1650 |
| Net Weight (Kg) | 1.380 |
| Gross Weight (Kg) | 1.400 |
Video
REQUEST INFO
OR GET A QUOTE
To get more detailed information about our products or to request a product, fill out the form completely and send it to us. Our relevant team mate will get back to you as soon as possible.
Get a Quote
Related Products

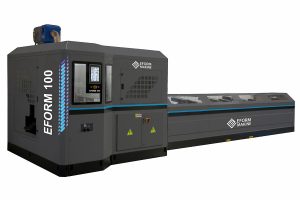

EFORM 100 Fully Automatic Saws
