Semi-Automatic Vertical Action Circular Saw.
MT 315DXS Semi Automatic Saw
Heavy duty semi-automatic circular saw designed for fast cutting with automatic horizontal mitre positioning.
Standart Features
- Foot switch actuation
- Hydro-pneumatic operation of saw head smoothes descent for optimum cut
- Heavy duty, helical gear and worm gear sets in gearbox
- Head descends on hardened linear guides
- Back lash reduction for prolonged blade life
- Easy, positive 0-45° right and 60° deg mitre left
- Coolant tank with box to collect chips and electric pump for blade lubrication and cooling
Optional Features
- Variable blade speed with inverter (20-80rpm)
- Material support roller
- Saw Blade
Cutting Capacity
| CUTTING CAPASITY | |||
| Maximum Saw Blade Size Ø | 350 mm / 370 mm | ||
| Head Swivel | 90° | ±45° | +60° |
| Round (mm) | 110 | 110 | 90 |
| Square (mm) | 100×100 | 90×90 | 80×80 |
| Rectangle (mm) | 160×90 | 120×80 | 80×80 |
Technical Specifications
| TECHNICAL SPECIFICATIONS | ||
| Main Voltage (V) | 400 | |
| Control Voltage (V) | 24 | |
| Installed Power (kW) | 3,1 | |
| Nominal Current (A) | 7,6 | |
| Main Saw Motor (kW) | 2,4-3 | |
| Coolant Pump Motor (kW) | 0,06 | |
| Air Pressure (Consumption) | 6 kg/cm2 (240 ℓ/min) | |
| Blade Speed (RPM) | 36/72 | |
| Head Swivel | 90°/±45°/+60° | |
| Saw Blade Size (mm) | Diameter | 350 |
| Bore | 32 | |
| Pin Holes | 2xØ11 / Pivot Center Ø63 | |
| Machine Dimensions (LxWxH) mm | 1.000x800x1.800 | |
| Net Weight (Kg) | 460 | |
Video
REQUEST INFO
OR GET A QUOTE
To get more detailed information about our products or to request a product, fill out the form completely and send it to us. Our relevant team mate will get back to you as soon as possible.
Get a Quote
Related Products

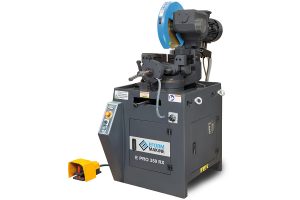

E PRO 350RX Semi Automatic Saw
