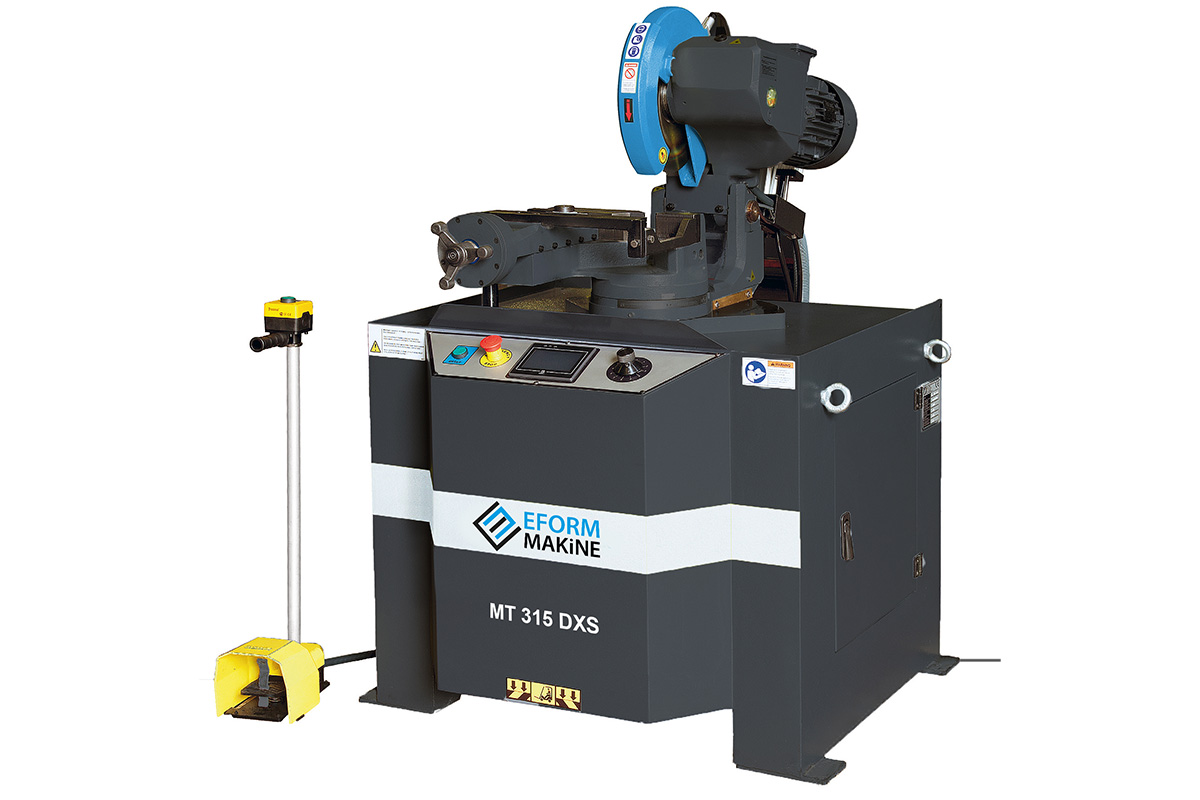

Heavy duty semi-automatic circular saw designed for fast cutting with automatic horizontal mitre positioning.
Standart Features
- Semi-automatic mitre cutting circular saw designed for fast cutting.
- ±45° Horizontal automatic mitre,
- High production rates, ideal for short batch runs,
- Standard micro-spray coolant system,
- PLC controlled color type touch screen display,
- Program save and load ability,
- Heavy duty gearbox,
- Foot and button switch actuation
- Hydro-pneumatic operation of saw head smoothes descent for optimum cut
- Cutting speed regulator
- Adjustable head stroke according to the dimensions of the material which has to be cut
- 2 speed main motor
- 45° right to 45° left cutting
Optional Features
- Material support roller
- Saw Blade
Cutting Capacity
| CUTTING CAPASITY | ||
| Maximum Saw Blade Size Ø | 315 mm | |
| Head Swivel | 90° | 45° |
| Round (mm) | 95 | 85 |
| Square (mm) | 80×80 | 70×70 |
| Rectangle (mm) | 110×60 | 80×50 |
Technical Specifications
| TECHNICAL SPECIFICATIONS | ||
| Main Voltage (V) | 400 | |
| Control Voltage (V) | 24 | |
| Installed Power (kW) | 2,95 | |
| Nominal Current (A) | 9,8 | |
| Main Saw Motor (kW) | 1,8-2,2 | |
| Oil Mist Lubrication System (kW) | 0,005 | |
| Air Pressure (Consumption) | 6 kg/cm2 (240 ℓ/min) | |
| Blade Speed (RPM) | 40/80 | |
| Head Swivel | 90°/45° | |
| Saw Blade Size (mm) | Diameter | 315 |
| Bore | 32 | |
| Pin Holes | 2xØ11 / Pivot Center Ø63 | |
| Machine Dimensions (LxWxH) mm | 1.200x970x1.400 | |
| Net Weight (Kg) | 480 | |
